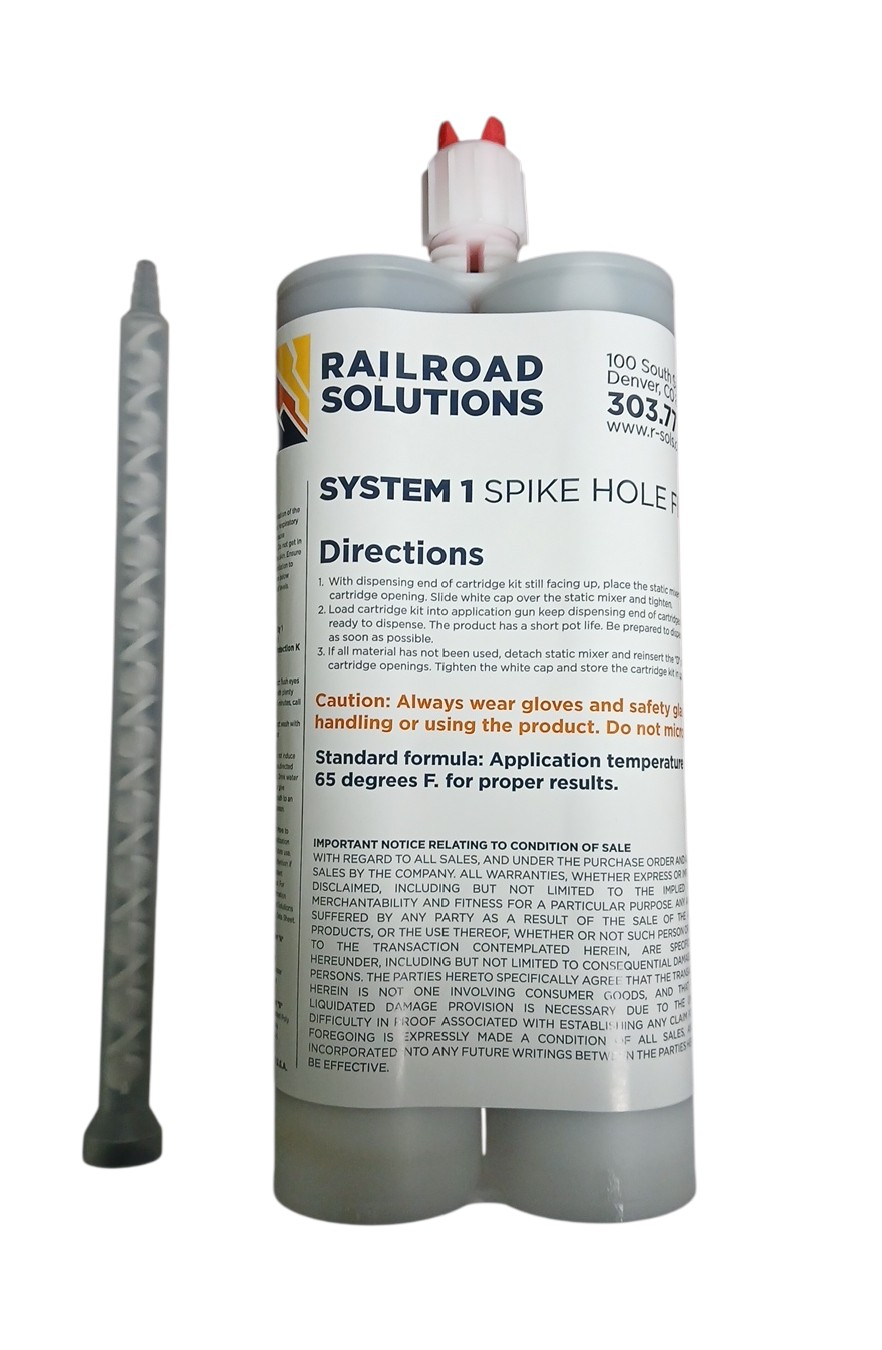

System 1 Hand Cartridge

Name: System 1 Hand Cartridge
SKU: 4123-221
Availability: InStock

Item #: 4123-221

Retail pricing:

$180.00

Description

System 1 is a two-component polyurethane formula that has excellent memory and density, and can be applied in virtually any weather conditions. System 1 will perform well in either production gangs with a machine/ operator or with section crews to handle smaller jobs with hand gun systems.

**Sold in cases of 12**

Specially formulated two-component polyurethane with excellent memory.
Insensitive to moisture and can be applied in extreme heat or cold.
Excellent for filling all tie cavities, especially spike holes and it will not shrink after curing.
Designed to be flexible in its application.
Performs well in either production gangs with a machine/operator or with the handguns for emergencies and with section crews to handle smaller jobs.

Composition and Material

System 1 polyurethane is a two-component, 1:1 ratio.
System 1 will not shrink after curing and provides dense wood like compound.
Tack Free Time, 75°F: 5 hole application 10 minutes.

Applicable Standards

System 1 reference testing ( TD-96-010 ) and AAR/UI study and the TTCI-FAST-HAL STUDY.

Weight: 22.5 lbs.

RELATED ITEMS:

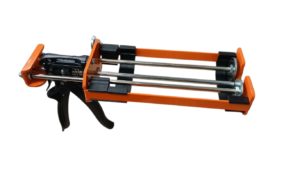

System 1 Hand Cartridge Applicator, Item # 4123-222: CLICK HERE

Product Resources

Our Sales Engineers Are Ready To Advise Customers Regarding Aldon^® Products For Railyard Safety and Repair.

Specifications

Physical Properties

Tie condition: good to poor
Insertion strength: 9,000 psi
Extraction strength: 7,640 psi
Set Times: (in tie) 5 min
Density: 42 lbs/cuft
Shelf Life: Shelf life of properly stored containers is two years.

Specific Gravity

Component A – 1.25 ± .02 gr/cc
Component B – 1.28 ± .02 gr/cc
Mixed – 1.26 ± .02 gr/cc

Viscosity

Component A – 500-780 cps
Component B – 500-780 cps
Mixed – 600 cps

Shelf Life

Component A – 2 Years
Component B – 2 Years

Precautions

It is mandatory that the user take the following precautionary actions to protect worker and the public.

1. KEEP OUT OF REACH OF CHILDREN.
2. Avoid inhalation of vapors. Ensure adequate ventilation.
3. Avoid contact with skin. Protective clothing is recommended. Contact areas should be washed with soap and water.
4. Avoid contact with eyes. Protective goggles are recommended in case of splashing. Flush eyes with water if contact occurs.
5. Avoid ingestion of material. If ingestion occurs, contact a poison center or physician.
