Whack 'Em Single Railroad Wheel Chock w/Flag - Flush Rail

Manufactured by Aldon®

Item #: 4011-33

Retail pricing:

$168.03

Description



Severe duty Wheel Chocks

Same proven design as our standard wheel chocks.

Under certain loading/unloading conditions, such as with tank cars, wheel chocks with steel spurs can sometimes get stuck under the wheel. No problem! Aldon "Whack 'Em" chocks have reinforced steel handles that stand up to hammer blows or yanking the handles sideways.

Handle Length 28"

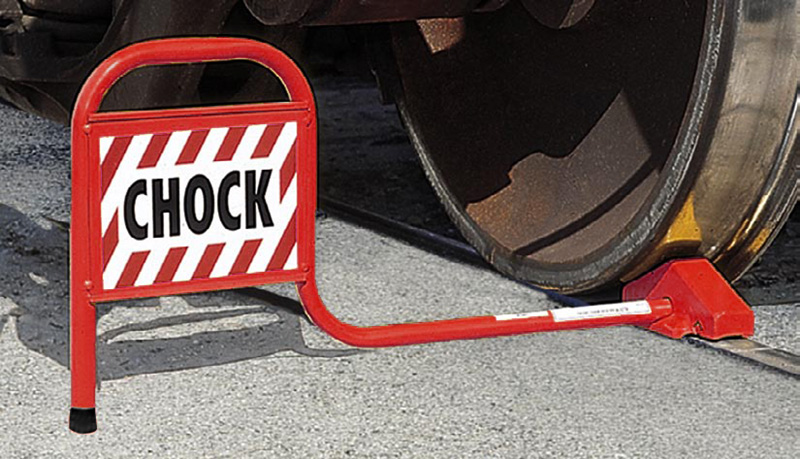

(photo depicts exposed rail model)

Aldon Company is the originator of the replaceable traction spur railroad wheel chock. Since 1955 we have offered high quality railcar wheel chocks. Don’t settle for a knockoff chock.

All steel construction railcar wheel chocks with replaceable rail biting spur for securing freight cars and locomotives on exposed track . The traction spur can be rotated to a new edge or replaced when dulled for increased product life. Order replacement spurs from Aldon.

Aldon replacement spurs

Works on all train rails from 75lb/yd to 141lb/yd and wheel diameters 28" - 44".

Specifications

Aldon’s steel railcar chocks were successfully tested at the Association of American Railroad’s testing facility at Pueblo, Colorado to withstand more than 25,000lbs of drawbar pull. That’s roughly equivalent to 32% of a typical SD-40 freight locomotive’s drawbar pull.

Other Essential Safety Products For Your Spur Track

RR Sign Holders



OSHA Sign Plates



Derails



Track Clearance Markers



Switch Stand Safety



Safe Use of Product

Cautions

  1. For use on railroad car or locomotive wheels 28"-44". Do not use on smaller or larger diameter or on other types of wheels.
  2. For rail sizes 75 to 141 lbs./yd.
  3. Set brake before installing chock. Chock alone may not hold car in place.
  4. Use 2 chocks per car being chocked.
  5. DO NOT install chocks while car is moving.
  6. Rail surface must be clean. Do not install this product on oily or greasy rail - product may slip.
  7. Spurs are important in holding chock to rail. Rotate spur when edge becomes dull. Replace spurs when necessary. Dull or missing spurs may cause chocks to slip.
  8. Do not use chocks on grades. If your track has a dip or a hollow, extra care must be taken to secure car.
  9. Chocks may not hold if rail car is lifted up at one end.
  10. Excessive vibration may cause a chock to slip.
  11. Keep fingers and hands away from car wheel. Watch your head!
  12. On double chocks, always use tarp strap (supplied with chocks) to draw chocks tight.

Additional information

Shipping Weight 15 lbs
Shipping Dimensions 34 × 9 × 19 in
