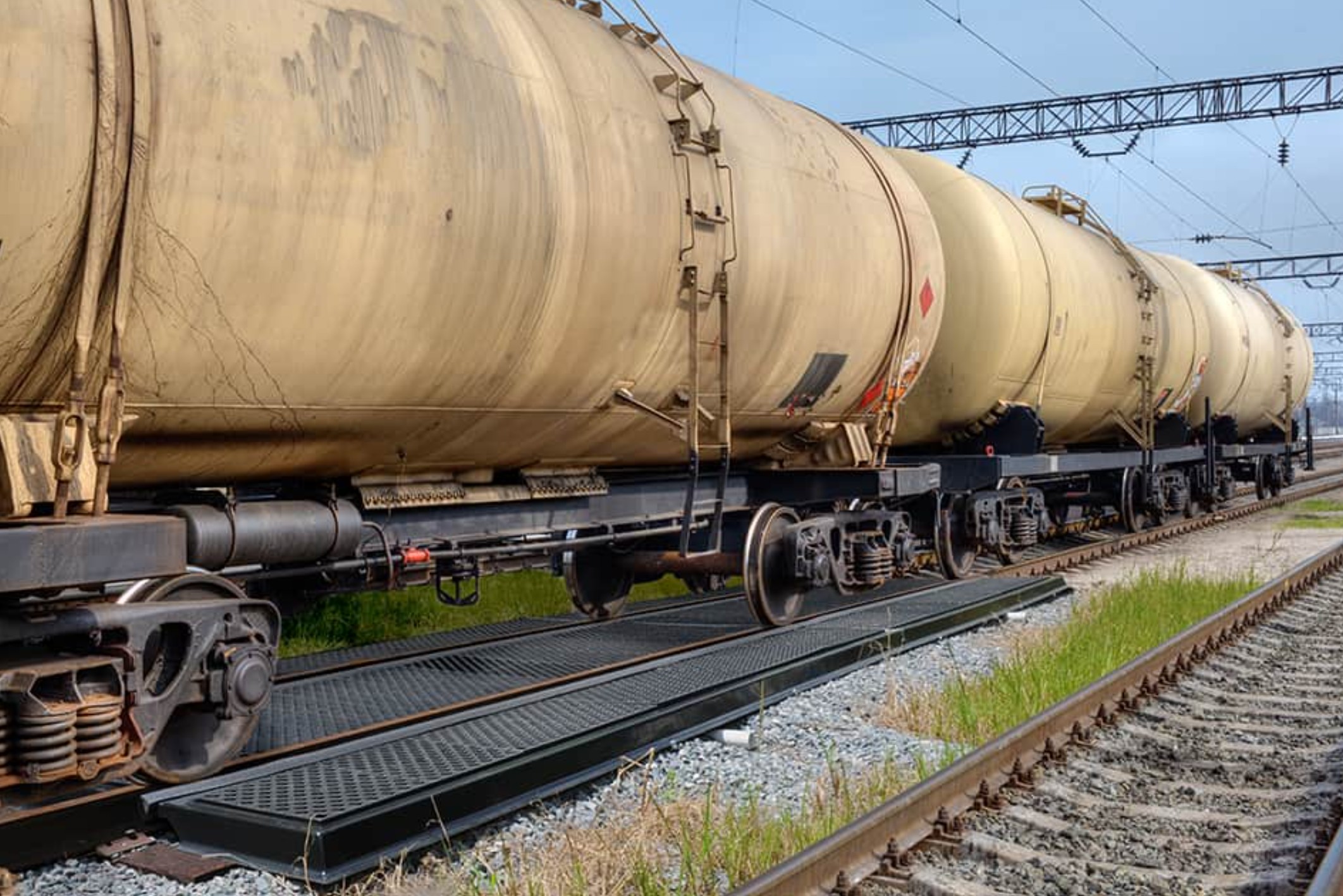

Composite Track Pan, "Center Pan" Only, 20' System

• Easy installation - minimal site preparation (no excavation) required.
• Constructed with high strength, non-porous, corrosion-resistant fiberglass for years of reliable service.
• Low-profile: 20' long x 4-7/8" high.
• Pandrol compatible.
• Railside gasket sealing system – prevents spills from leaking between track pans and rails.
• Optional flow-through technology increases containment capacity for larger spills while minimizing cleanup of smaller spills.
• Optional drainage manifold allows center and side pans to drain to oil/water separators, holding ponds, etc.
• Drainage manifold comes with clean out port to allow for removal of sludge blockages, etc. Installation requires minimal ballast removal.
• Optional polyethylene (LLDPE) grating package available for safer foot traffic.

System Includes:

• 1x Part #7200- Center Pan
• 1x Part #7223 – Drain Manifold
• 4x Part #7225 – Rail Gasket
• 20x Part #7235 – Grating Support Pedestal
• 1x Part #7227 – Center Seam Cover
• 10x Part #0420 – Grates

**Track Pan Rebar Fasteners Sold Separately**

Item #: 4130-21  CLICK HERE

Dimensions:

255" x 57.3" x 4.5" (6477mm x 1454.2mm x 114.3mm)

Containment Capacity:

191 Gallons (723 L)
