WorkMaster Electric Hopper Car Gate Openers

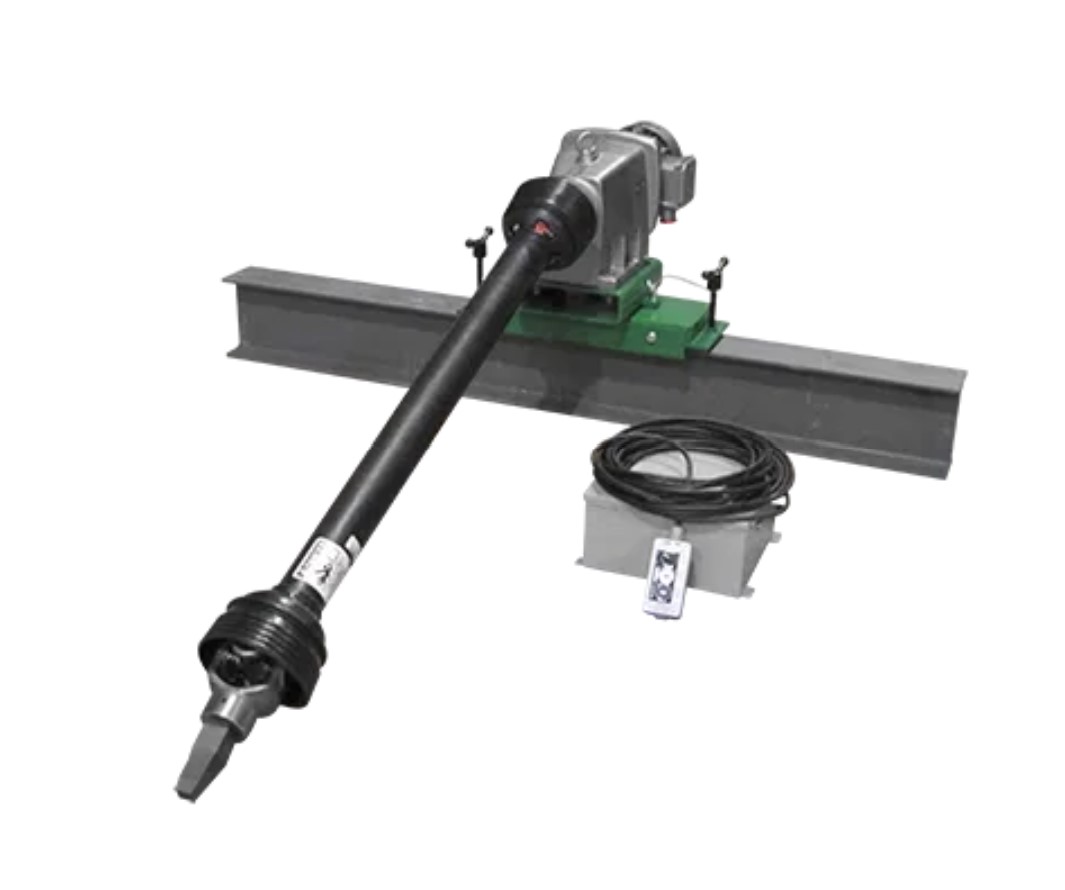

These Electric-Powered Gate Openers are pendant-controlled, instant Forward-Reverse action, and a Telescoping Drive Shaft (TDS) for both vertical and horizontal adjustment to follow traveling gate and accommodate varied-height capstans. They use a 5-HP motor to generate a constant speed of 34-RPM and a power output of 2,000 LB-FT during surge and 875 LBS-Ft during operation. The driveshaft telescopes 40” to 82” (longer lengths available) and angles 50° vertical and horizontal to accommodate both traveling gate mechanisms and varied-height gates. It can be purchased with a ROLLING CARRIAGE that pivots 180° and enables opening hopper car gates on parallel tracks, and a 90° pivot enables safe, out-of-the-way drive shaft protection when not in use. (In-Line series opener.)

**ROLLING CARRIAGE & BEAM SOLD SEPARATELY.**

Included items:

• (1) Electric Motor (Models: 230/460V, 480V & 575V Motor Options)
• (1) Drive Shaft, 48" Compressed to 80.5" Extended
• (1) Electrical Controls and Pushbutton Pendant (20' Cord)
• (1) Capstan Drive Fitting (1-Piece Step-Tapered Drive Tip, 1-1/4” x 1-1/2” Sq.)
• (1) Manual

Weight: 239 lbs.

RELATED ITEMS:

Rolling Carriage, Item #: 6895  CLICK HERE
