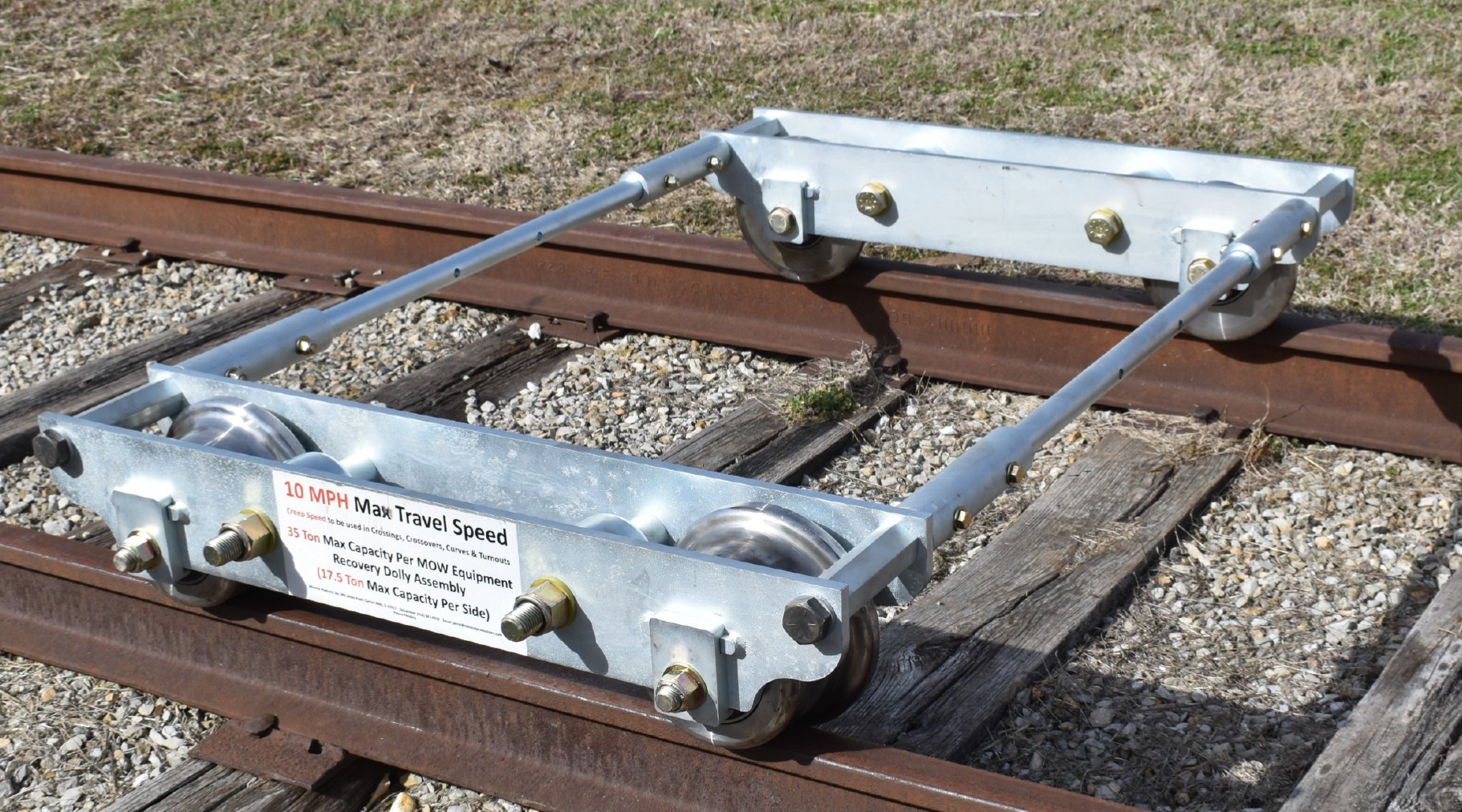

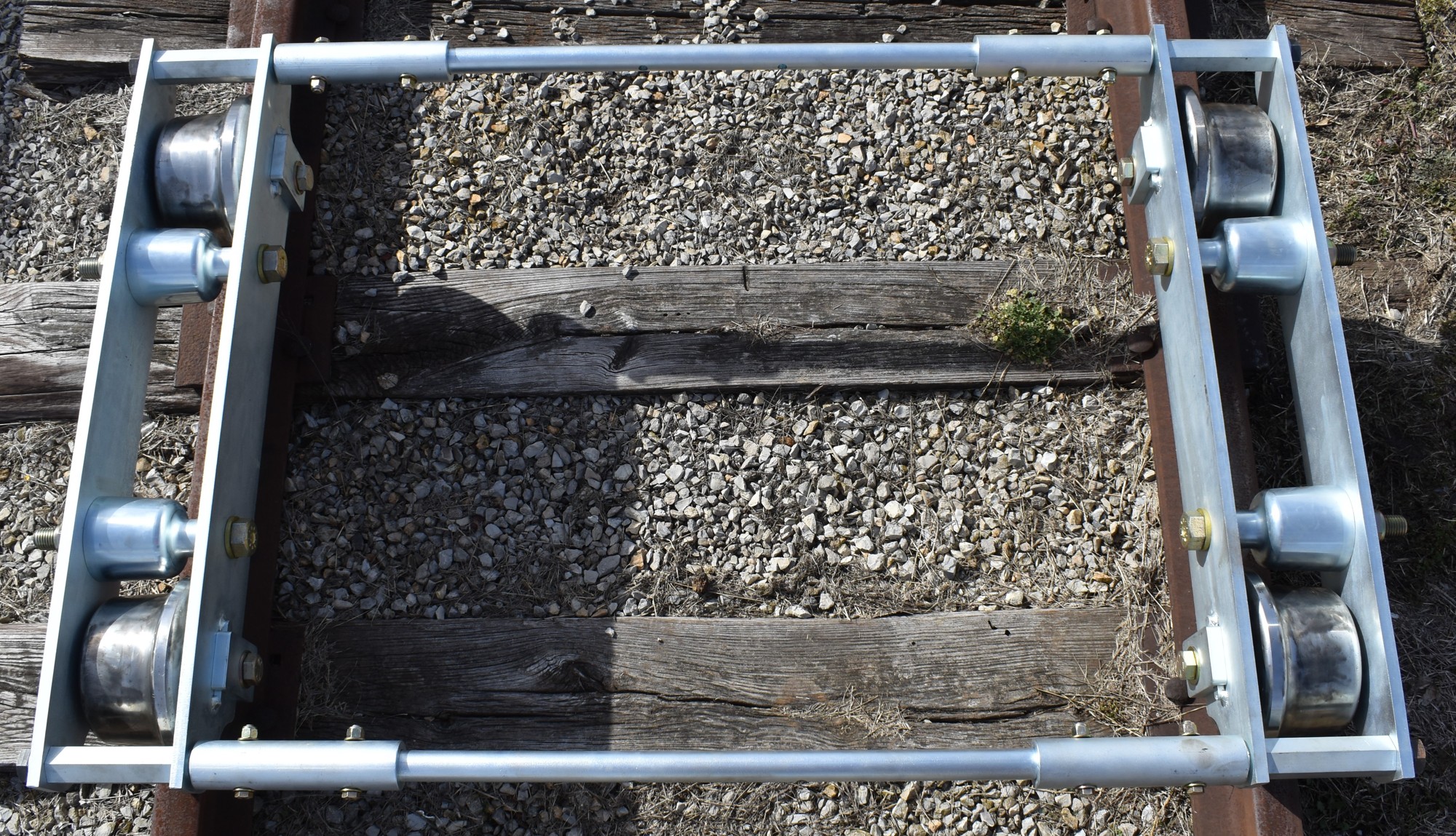

MPI 3520 Locomotive, Railcar & Recovery Dolly

The MPI 3520 Locomotive/Railcar Recovery Dolly is ideal for removing failed or disabled locomotives and railcars from active tracks, helping prevent unnecessary train delays. Its design allows two people to assemble it at the job site, with the heaviest component weighing 95 lbs. The dolly has a 35 US ton load capacity and can travel at speeds up to 10 MPH, with creep speeds recommended in crossings, crossovers, curves, and turnouts.

Features & Specifications:

• Designed for locomotive and railcar recovery operations
• 35 US ton load capacity
• Two-person job site assembly
• Heaviest component to lift: 95 lbs.
• Travel speed: up to 10 MPH

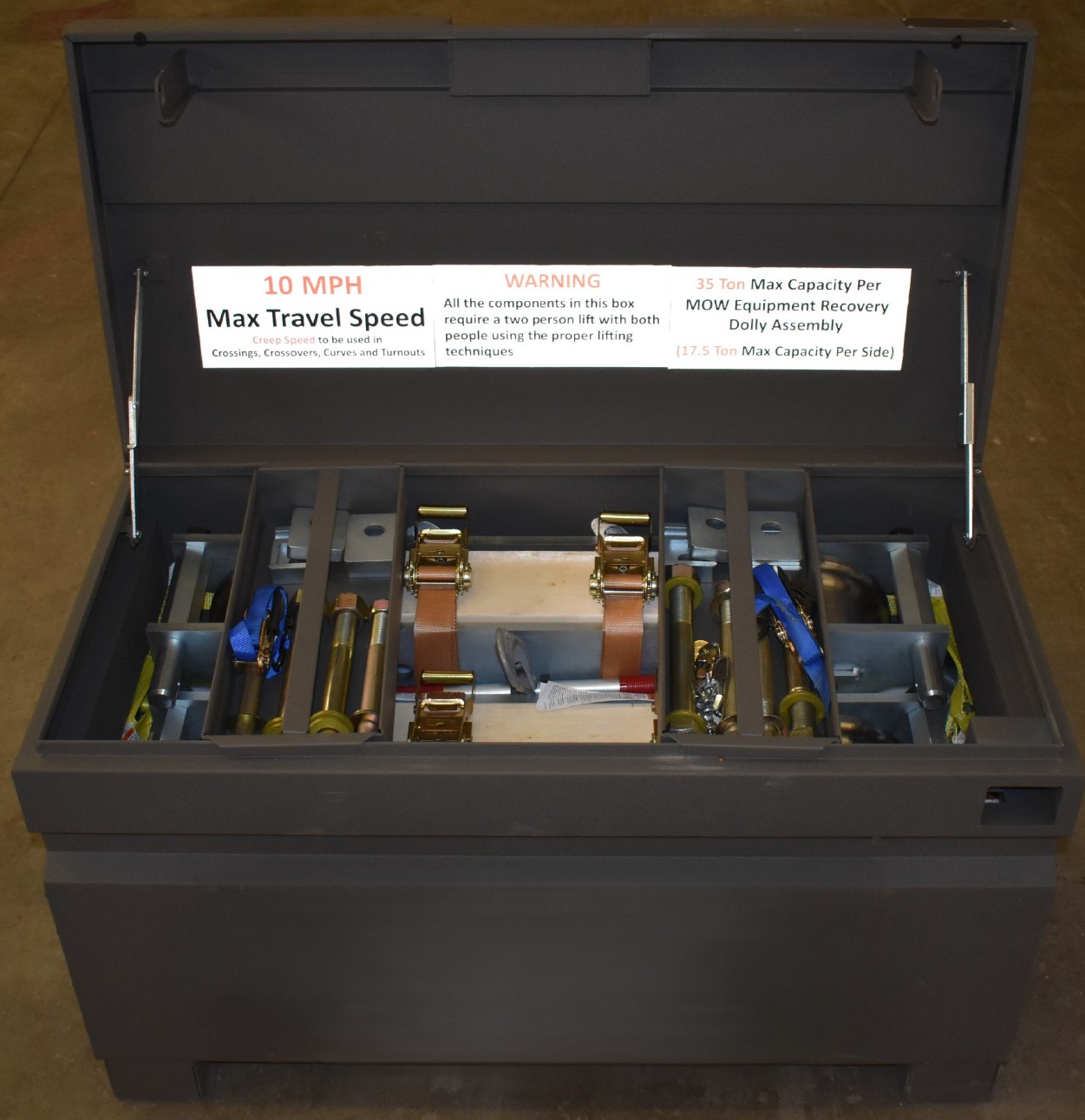

• Stored in 60" wide x 28" tall x 24" deep lockable steel storage container
• Includes two canvas bags with fasteners; includes canvas tool bag with ratchet, sockets, and wrenches
• Overall height above top of rail: 9.75" / 248 mm
• Top of rail to bottom of cross tube clearance: 6.75" / 171 mm; width: 71" / 1,803 mm; length: 42.625" / 1,083 mm
• Accepts axles/wheels with tread diameters from 12" to 44"
• Assembled weight: 827 lbs. / 375 kg.
