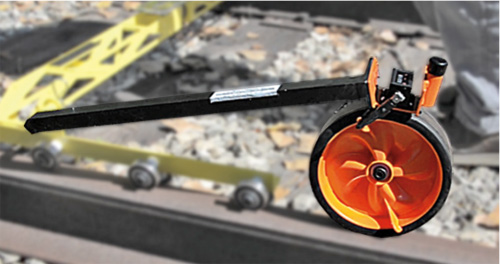

High-Clearance Distance Counter for Roadmaster Gauge Reader

Track measurements accurately with Aldon^®’s High-Clearance Distance Counter, designed specifically for use with the Roadmaster Gauge Reader. This rolling distance counter provides reliable readings while maintaining the clearance needed for track gauge work.

Features & Specifications:

• Optional distance counter for Roadmaster Rolling Gauge Reader
• Rides 2" above rail
• Measures up to 10,000 feet of travel
• Continuous distance measuring, except 10" loss when passing over switch frog gap
• Quick-pin mounting on either side of Roadmaster Rolling Gauge Reader for change of direction.
• Weight: 9 lbs.
